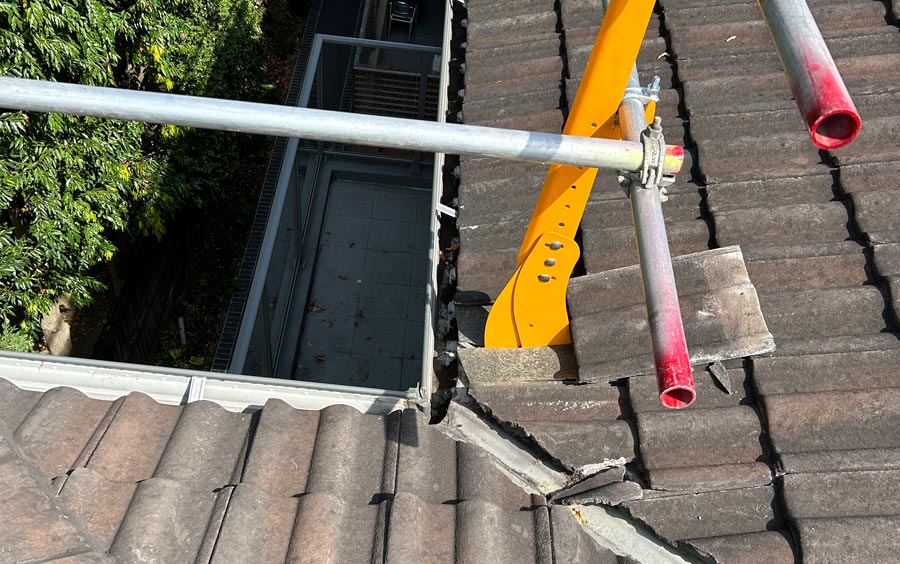

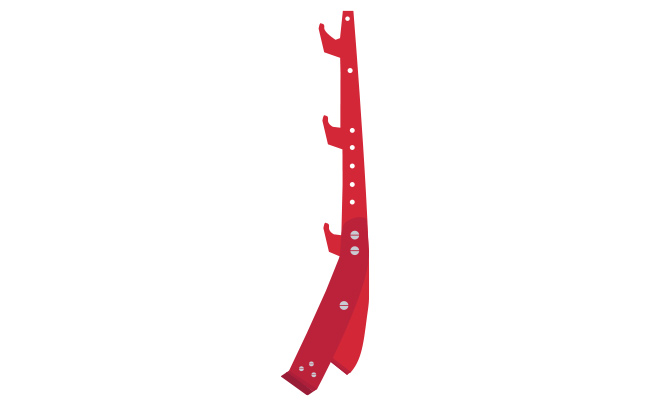

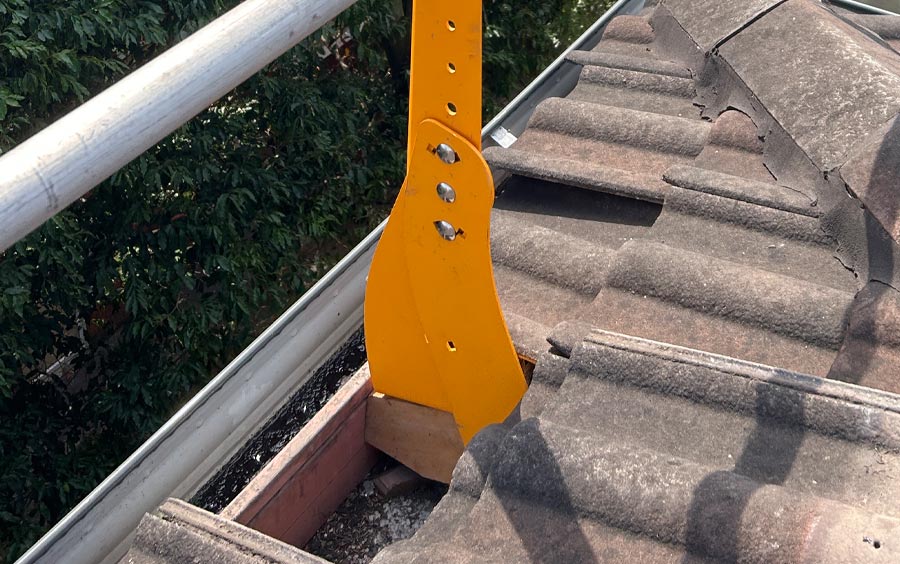

Under-Tile Bracket

The under-tile bracket is specifically designed to fit directly to the rafters of any timber frame construction, providing a secure and stable base for tile roof projects.

Features & Benefits Under-Tile Bracket

This system is designed for easy adjustment, accommodating 90mm x 35/45mm or 100mm x 35/45mm trusses and rafters, making it adaptable to a variety of roof structures.

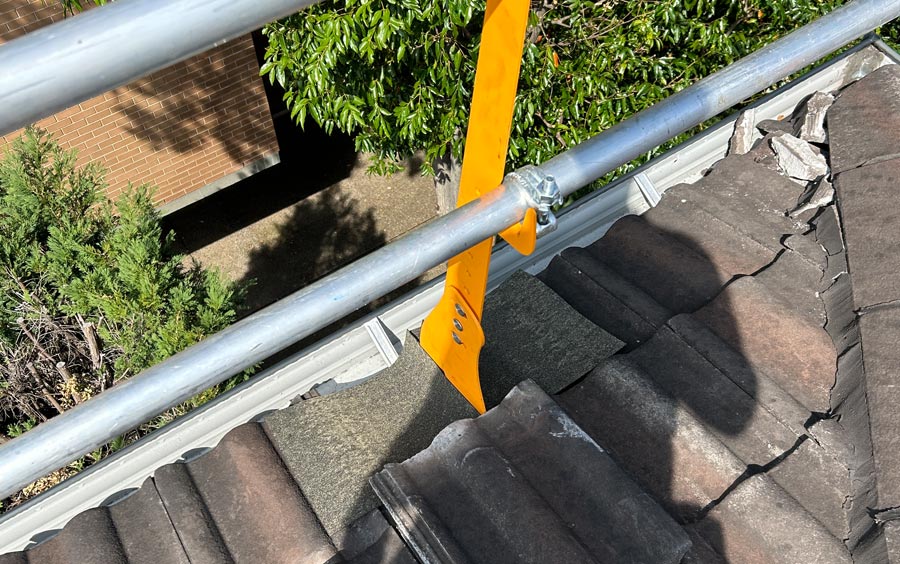

One of the standout features of this system is its minimal impact on the roof. Each bracket requires only a single tile to be temporarily removed during installation, which can then be easily reinstalled once the bracket is no longer needed. This approach not only simplifies the installation process but also helps maintain the aesthetic and structural integrity of the roof.

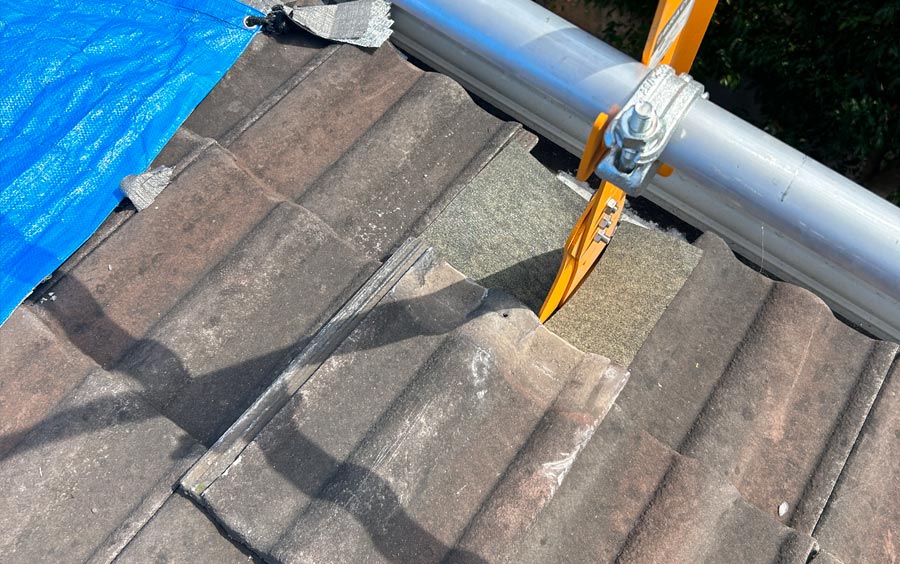

With a tile missing we use a rubber cover, an essential feature that prevents rainwater from penetrating the roof cavity while the bracket is in place. This protective element ensures that the internal structure remains dry and free from potential water damage, preserving the longevity and integrity of the building.

Under-Tile Bracket System Uses

The Tile Bracket System is expertly engineered to be installed on roofs with pitches of up to 35 degrees, offering a versatile and efficient solution for both tile roof repairs and new tile roof installations.
