Are you feeling a bit confused when it comes to clamp on edge protection and which variant between parapet, slap and clip-loc will suit you best? Well, wonder no more as in this guide we go through the different types of clamp on edge projection that are availasble to you and when to use them.

What is Clamp On Edge Protection?

Clamp on edge protection can mean many things. Being a versatile company clamp on edge protection covers a wide range of products we offer. Let me delve more into this and simplify this for you. All our clamp on edge protection systems have been designed, tested and certified to meet the Australian and New Zealand Standard AS/NZS 4994.2019. These systems use clamps or surface pressure, meaning than in most cases drilling is not required and patching of holes is not needed. So you can save on having to pay for someone to have to patch and paint. Most of these systems can be set off site to avoid congestion and time spent working on a live edge and working at height.

Edge Protection Clamp Systems Available

These are the current “clamp” systems we offer. We also offer a wide range of other edge protection systems.

1. Parapet clamp
2. Slab clamp
3. Klip-loc
4. Girder clamp

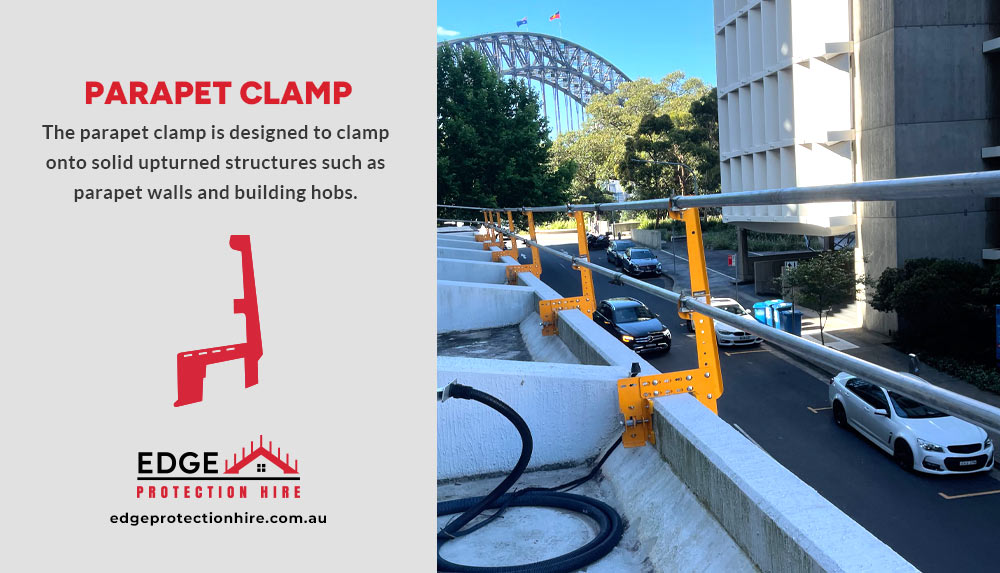

Parapet Clamp

The parapet clamp is designed to clamp onto solid upturned structures such as parapet walls and building hobs. The parapet clamp is adjustable to width of up to 380mm. This bracket can be set off site to minimise working at height or on and exposed edge. The parapet bracket has a max span of 5.4m so is less in the way than other systems on the market, designed with compatibility with scaffolding tube the parapet bracket can tie in to scaffolding access stairs to create a complete and secure work area.

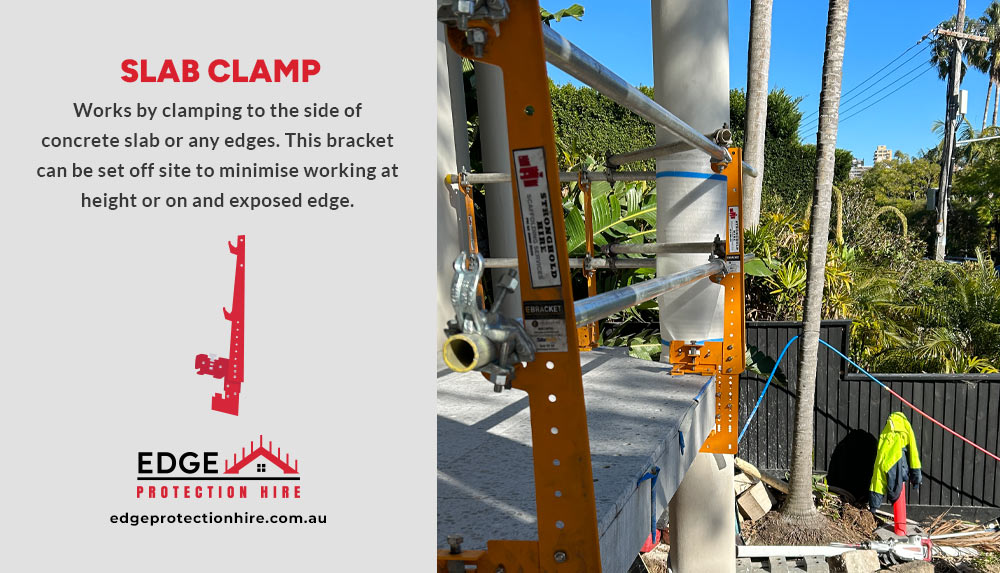

Slab Clamp

The slab clamp works very much like the parapet clamp but works by clamping to the side of concrete slab or any edges. Also this bracket can be set off site to minimise working at height or on and exposed edge. The slab clamp also has a max span of 5.4m so is less in the way than other systems on the market, designed with compatibility with scaffolding tube this bracket can tie in to scaffolding access stairs to create a complete and secure work area.

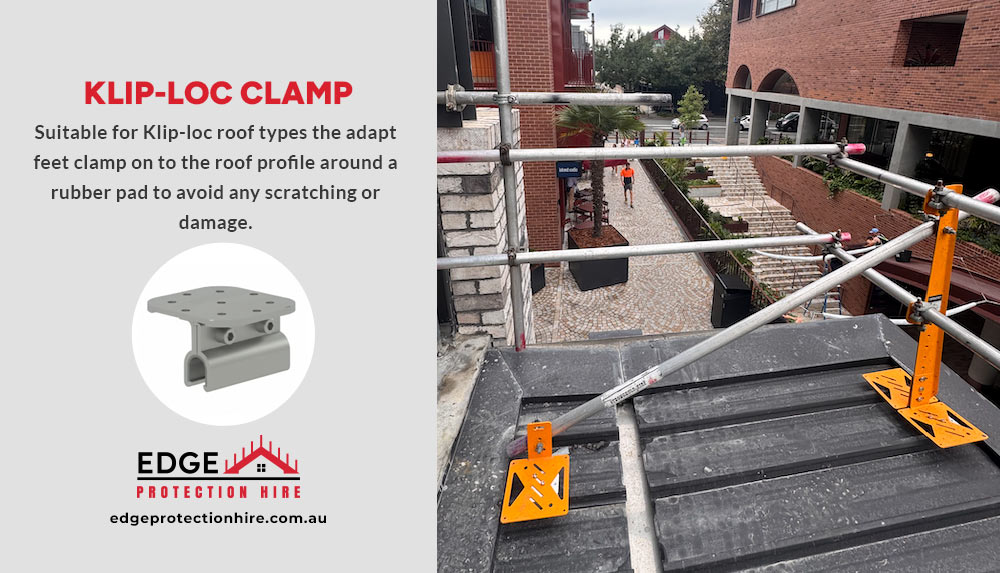

Klip-loc Clamp

This Klip-loc clamp bracket is our surface mount but with the Klip-loc attachment. Suitable for Klip-loc roof types the adapt feet clamp on to the roof profile around a rubber pad to avoid any scratching or damage. Designed, tested and certified this system provides edge protection without the need for fixings and patches up after removal

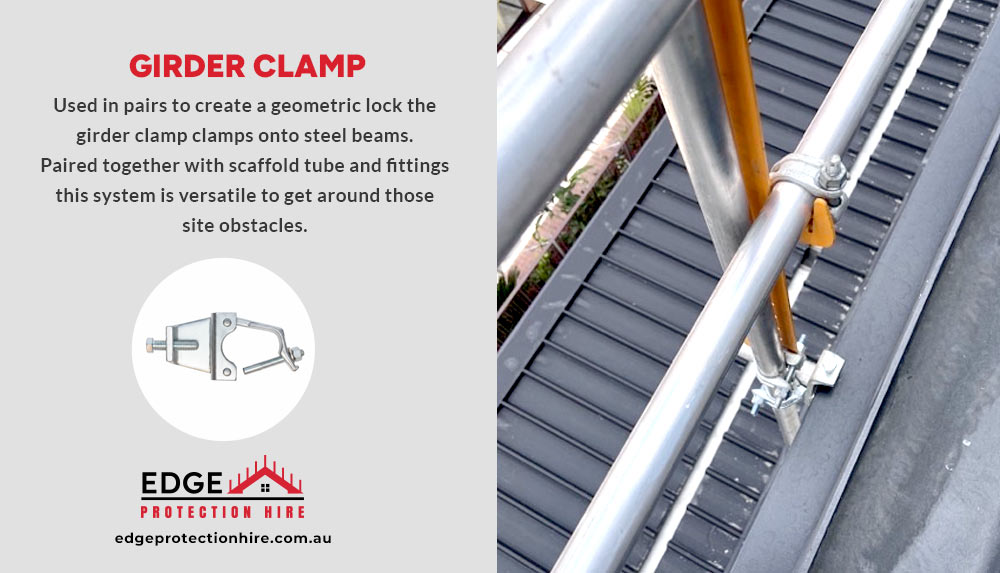

Girder Clamp

Last but not least, coming from a scaffolding background how can we forget the trusty girder clamp! Used in pairs to create a geometric lock the girder clamp, clamps onto steel beams. Paired together with scaffold tube and fittings this system is versatile to get around those site obstacles.

Clamp On Edge Protection Sydney

I hope this blogs helps clear things up for you with regards to edge proection clamps but if you have have any questions or want to discuss further then give us a call now on 02 8985 2020 or contact us online.
